Order Your Radiator Today!
Radiators
650006 – Kenworth T600 / T800 1994-2007 replaces o.e. bolt-on radiator
Dimensions
- Height: 40″
- Width: 28.75″
- Depth: 2.25″
Description
- Product Type: Radiator
- Orientation: Downflow
- Filler Neck: Top
- Inlet: 2.5″ (Left)
- Outlet: 3″ (Right)
- Oil Cooler: None
650007 – Kenworth W900 1995-2007 replaces o.e. bolt-on radiator
Dimensions
- Height: 40″
- Width: 28.75″
- Depth: 2.25″
Description
- Product Type: Radiator
- Orientation: Downflow
- Filler Neck: Top
- Inlet: 2.5″ (Left)
- Oil Cooler: None
650020 – Kenworth T600/T800 bolt on tank radiator with 2-3/4″ lower connection 2007
Dimensions
- Height: 40″
- Width: 28.75″
- Depth: 2.25″
Description
- Product Type: Radiator
- Orientation: Downflow
- Filler Neck: Top
- Inlet: 2.5″ (Left)
- Outlet: 2.5″ (Right)
- Oil Cooler: None
770006 – Peterbilt 379 Series replaces o.e. bolt-on radiator / with 3 row core / with expansion tank mounted on top tank of radiator 1995-2003
Find applications for 770006
Print This Product Share Via E-Mail Call For Availability
Dimensions
- Height: 36.25″
- Width: 34.5″
- Depth: 2.25″
Description
- Product Type: Radiator
- Orientation: Downflow
- Filler Neck: none
- Inlet: 2.5″ (Left)
- Outlet: 3″ (Right)
- Oil Cooler: None
770011 – Peterbilt 379 with 3 row core with Remote Mount Expansion Tank
Dimensions
- Height: 36.25″
- Width: 34.5″
- Depth: 2.25″
Description
- Product Type: Radiator
- Orientation: Downflow
- Filler Neck: none
- Inlet: 2.5″ (Left)
- Outlet: 3″ (Right)
- Oil Cooler: None

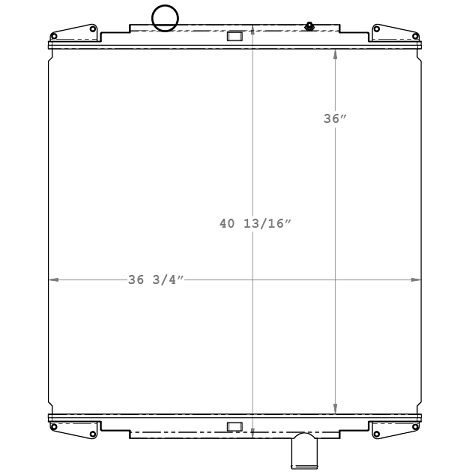

*770021 – Peterbilt 384/386, Kenworth W900 2008 – Newer Radiator
Dimensions
- Height: 36″
- Width: 36.75″
- Depth: 2″
Description
- Product Type: Radiator
- Orientation: Downflow
- Filler Neck: none
- Inlet: 2.5″ (Left)
- Outlet: 2.5″ (Right/Bottom)
- Oil Cooler: None
*This radiator is available with the mounting frame. Purchasing a new radiator with a new frame can save your mechanic up to 2 hours of labor. Radiators and frames are subject to twisting and flexing during the normal course of operating a truck. Re-using the original frame, which likely has a slight twist to it will cause stress on your new radiator and cause it to fail prematurely. Order your radiator with the frame and save labor and extend the life of your radiator.
