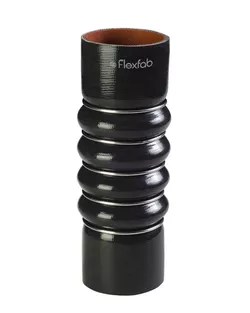

Silicone Coolant Bellows 7967 Series

Description

Designed for unique applications, Silicone coolant bellows are durable, long-lasting, and built to withstand extreme temperature environments.

Temperature Range

-65° F – 350° F

Construction

• Meets or exceeds the operating requirements of SAE J20 R1 Class A
• Once installed, the hose can handle up to 1.00” of lateral movement in the application
• 3-Ply Polyester reinforced hose
• Maximum operating pressure is 50 PSI

Features

• Part Number: 7967
• Inside Diameter: 2.5 Inch | 64 MM
• Outside Diameter: 2.82 Inch | 72 MM
• Overall Length: 8.5 Inches
• Stainless Steel Rings: Yes
• Burst Pressure: 150 PSI
• Weight: 0.5 lbs.
• Clamp: 2582-0040 or 2584-0312
